Technical Parameters:

Handle Lithium Battery: 3.7V / 1500mAh

Power Adapter:

• Input: AC100V–240V; 50Hz/60Hz, 0.4A Max
• Output: DC5V / 1A

Range of Torque: 0.5Ncm – 4.0Ncm (5mNm – 40mNm)

Range of Speed: 120rpm – 1000rpm

Features:

• HD OLED Display – High-definition display with clear parameter visibility and intuitive operation

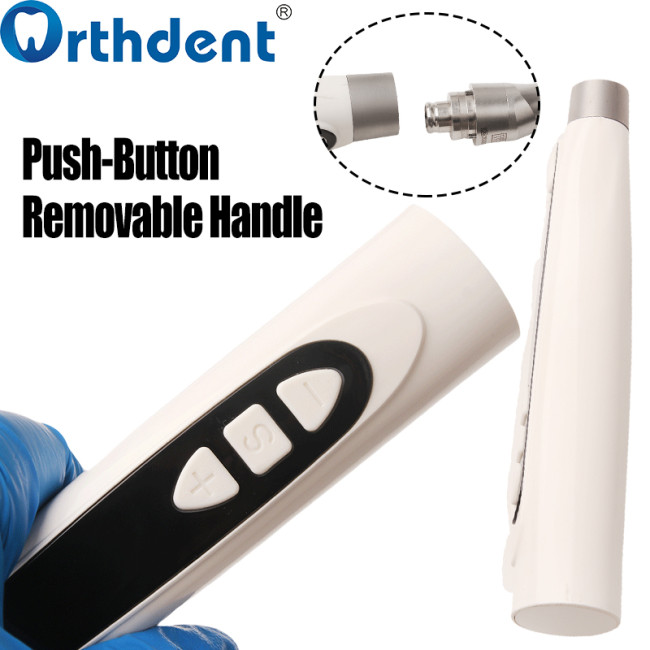

• Wireless Handle – Wireless design for convenient operation, no cable restriction

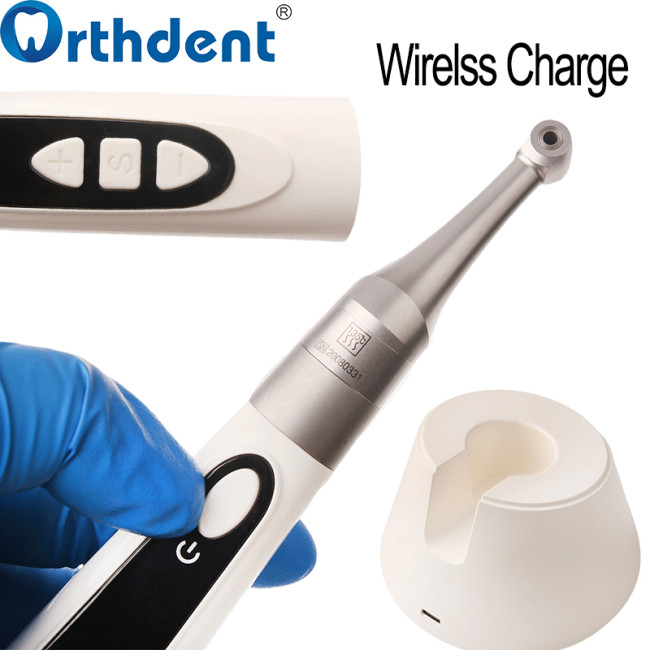

• Wireless Charging – Eliminates poor contact issues associated with traditional contact charging
• 10 Custom Programs + 6 Working Modes – Set different torque and speed for different file types to meet various clinical needs
• Large Capacity Battery – 1500mAh battery for extended working hours
• Auto Reverse Protection – Motor automatically reverses when torque is exceeded during root canal preparation, preventing perforation and file breakage
• Reciprocating Rotation Mode – Reciprocating cutting for efficient and safe operation
• Manual Rotation Adjustment – Manual rotation adjustment available based on clinical needs
• Detachable 1:1 Handpiece – High-quality detachable handpiece reduces noise and extends service life
• Left/Right Hand Switching – Supports both left and right hand operation modes

Apex Locator Function:

• Integrated design combines endomotor with apex locator for real-time working length monitoring during preparation
• Includes measurement lines, lip hooks, and accessories for precise root canal length measurement

Instructions for Use:

• Place the main body on the charging base and connect the power adapter for charging
• Set appropriate torque and speed in memory programs (M1–M10) based on the file type being used
• Connect the root measuring line and lip hook, perform calibration for root canal length measurement
• Attach the 1:1 handpiece and secure the root canal file
• Select working mode and begin root canal preparation
• If torque is exceeded during preparation, the motor will auto reverse. Exit, then re-enter to continue preparation

Packing List:

• Main body × 1
• Charging base × 1
• Adapter × 1
• Handpiece × 1
• Calibration Unit × 1
• Root Measuring Line × 1
• Lip Hook × 4
• File Holder × 2
