Dental LED Wireless Endodontic Endo Motor 16:1Contra Angle Root Canal Treatment

Dental LED Wireless Endodontic Endo Motor 16:1Contra Angle Root Canal Treatment

5.0
(5)

Copy and share this link on social network or send it to your friends

Copy
US$ 98.64
Similar Style
Customized Requirements
  • Protective mode: If there is obstruction: P1-P4 are able to automatically switch to reverse
  • rotation and then continuous rotation; P5- P8 are able to automatically switch to reverse
  • rotation and then stop working. P9 is reciprocating mode of 270° and 60°

Dental LED Wireless Endodontic Endo Motor


16:1Contra Angle Root Canal Treatment


Technical data


Free-running operating speed range: 150 r/min- 725 r/min (Accuracy is within士10%).

Torque range: 0.6 N.cm- 4.0N.cm. The accuracy is less than+0.2N.cm at a torque of 0.8
N.cm; and the accuracy is within +20% at other torques.

The transmission ratio of applied contra-angled: 16:1.

Protective mode: If there is obstruction: P1-P4 are able to automatically switch to reverse
 rotation and then continuous rotation; P5- P8 are able to automatically switch to reverse
rotation and then stop working. P9 is reciprocating mode of 270° and 60°

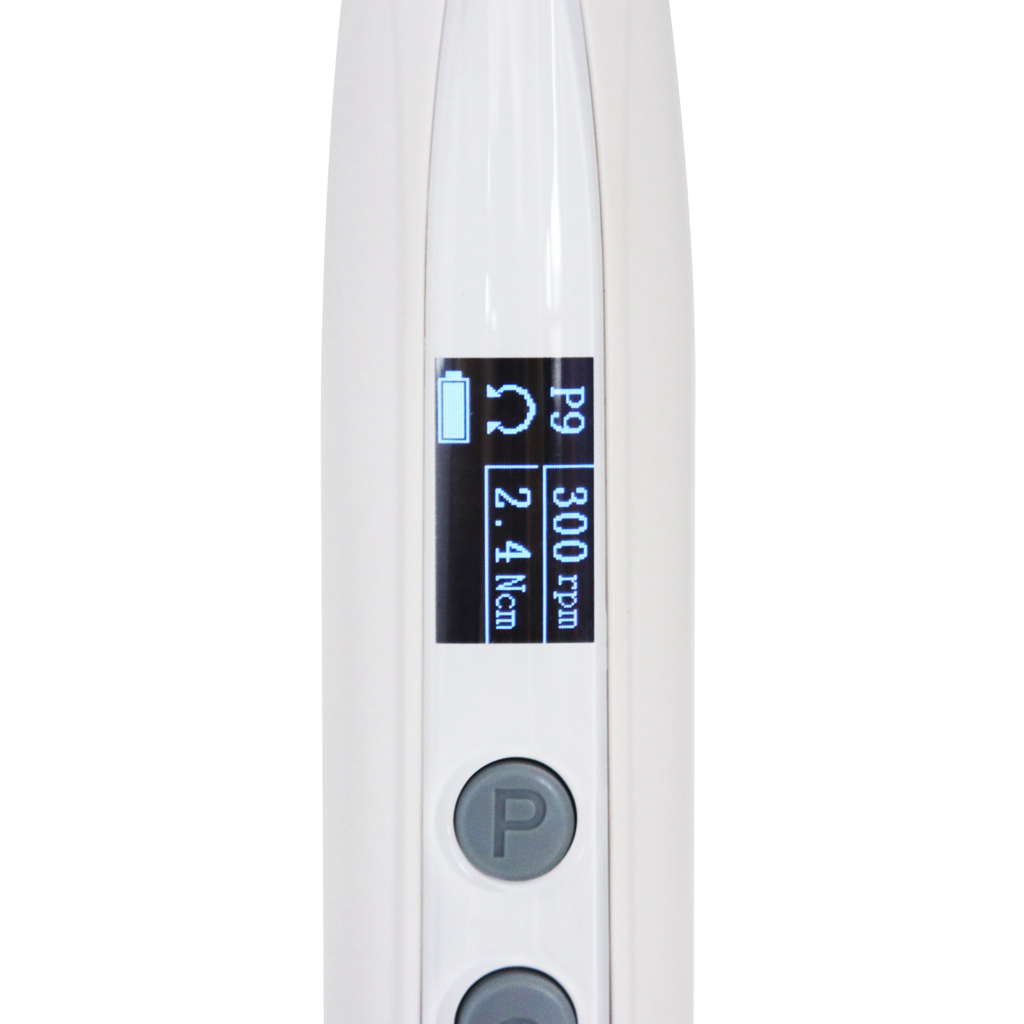

Memorizing programs: 9 user-defined modes are available; For P1-P8 Mode, the values
 of speed and torque are adjustable and automatically saved for each setting.


Noise level: ≤50dBA;

Power adapter: Input: ~ 220V,50Hz,20VA;

               Output: DC 5V 1.2A Max.

Fuse specification: T1A/250V;

Inserted Lithium battery: 3.7V, 1050mAh;

Dimension : 22x14x7cm;

Net weight : 650g;

Gross Weight : 800g;

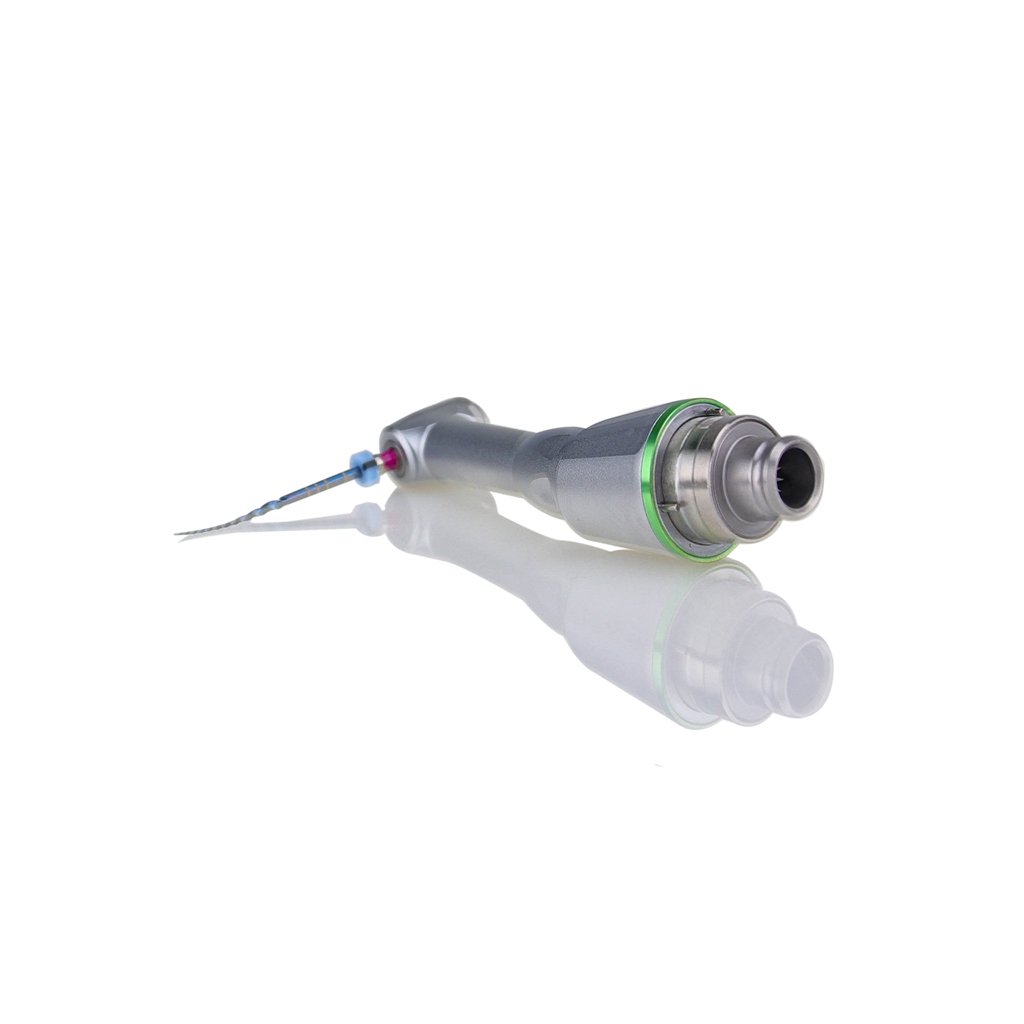

The force to withdraw the file from the contra-angled shall be at least 45N.

The chuck of contra-angled shall be able to transmit a torque of at least 4N.cm without
 slipping.

The eccentricity of file in rotation and without applied load shall not exceed a total
 indicated run-out of 0.08 mm.

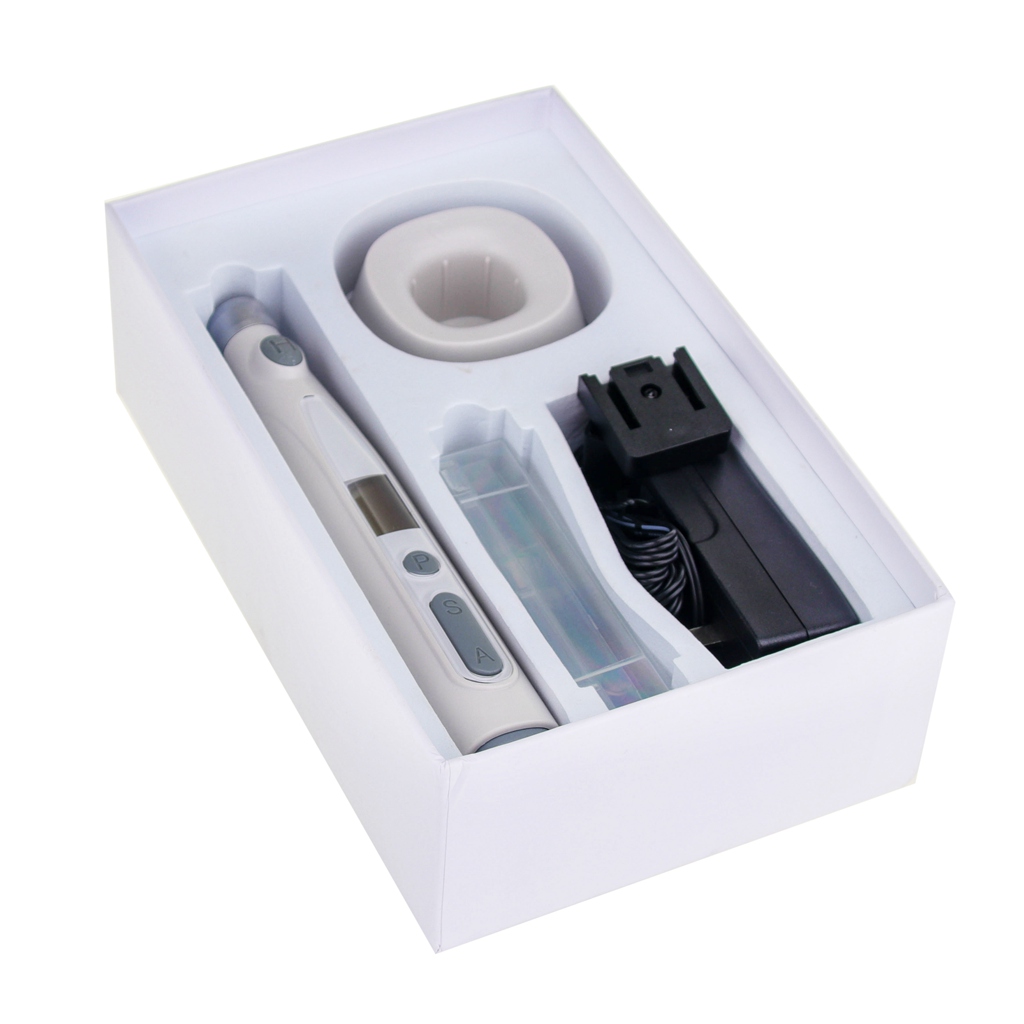

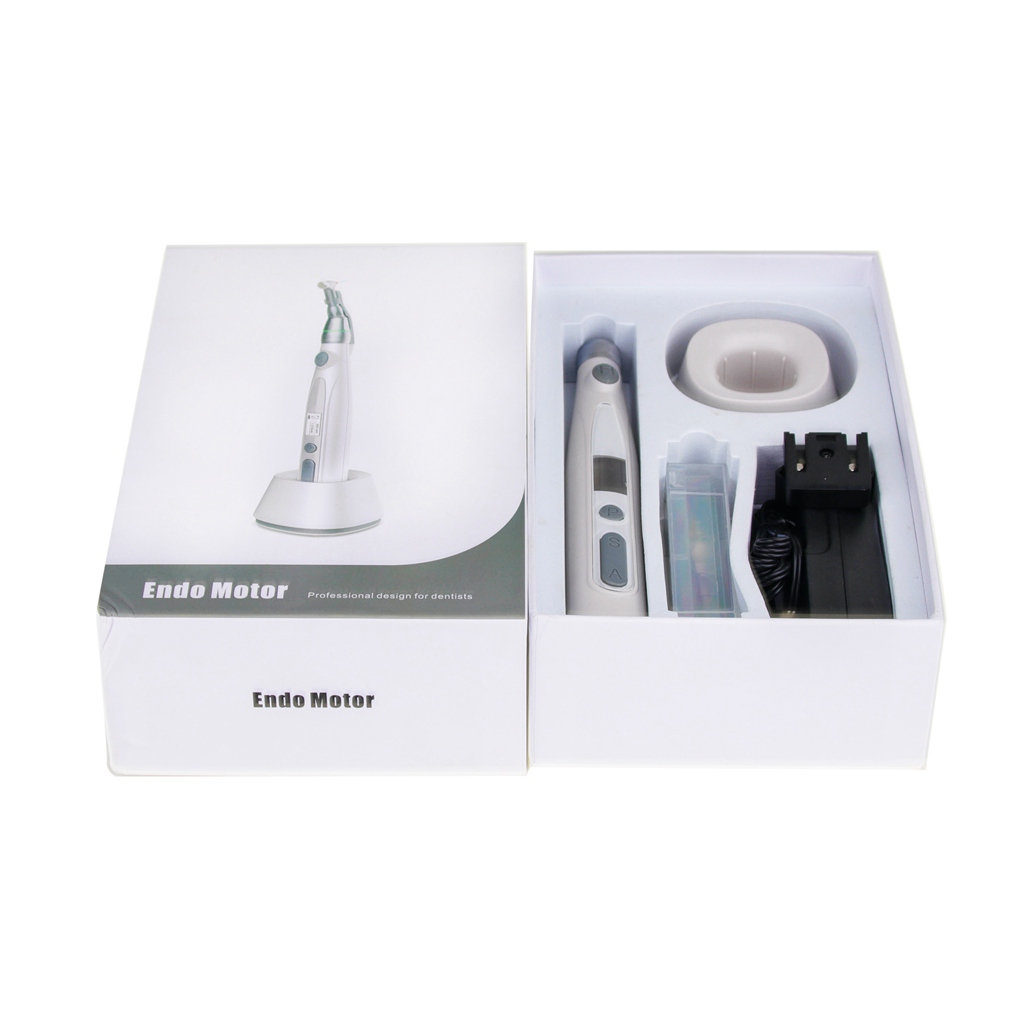

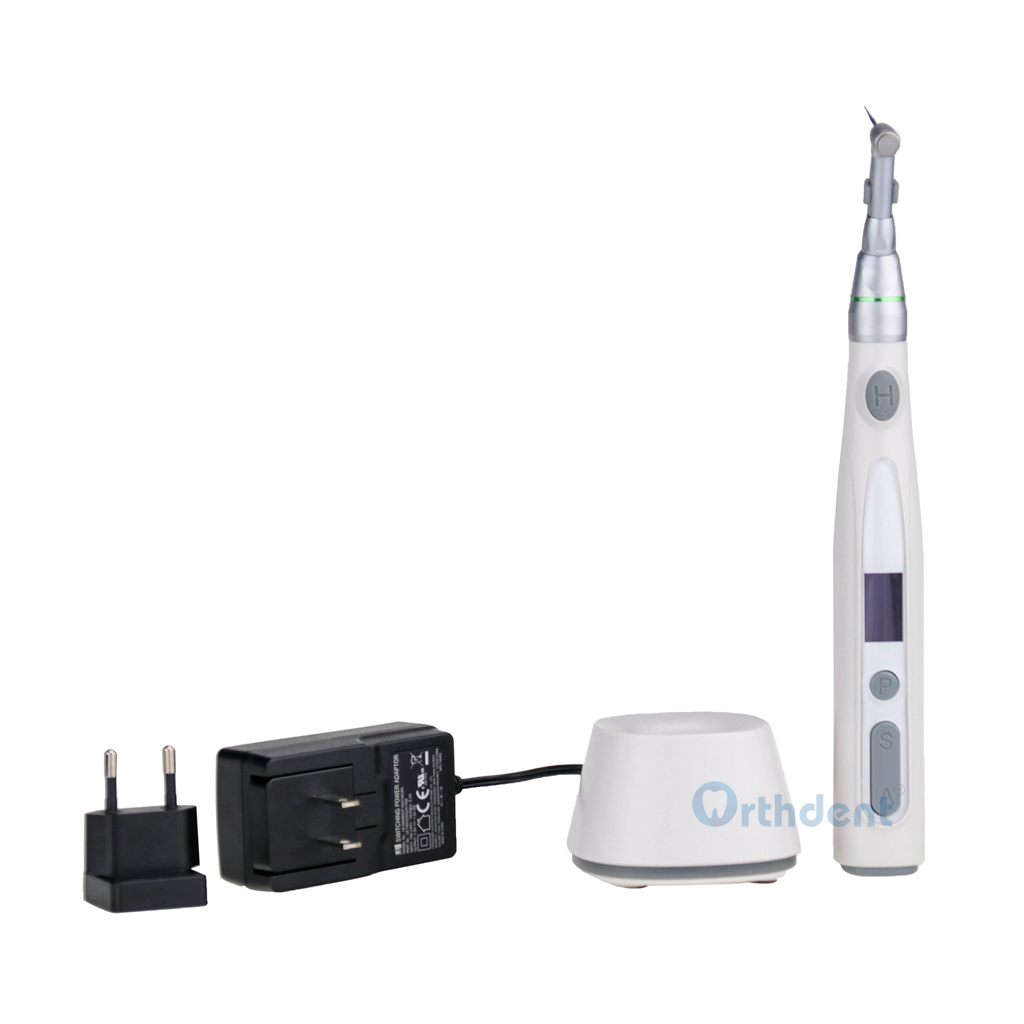

Packing List:
Handpiece  1
Power Adaptor  1
LED light   2 (can besterilized at 135℃)

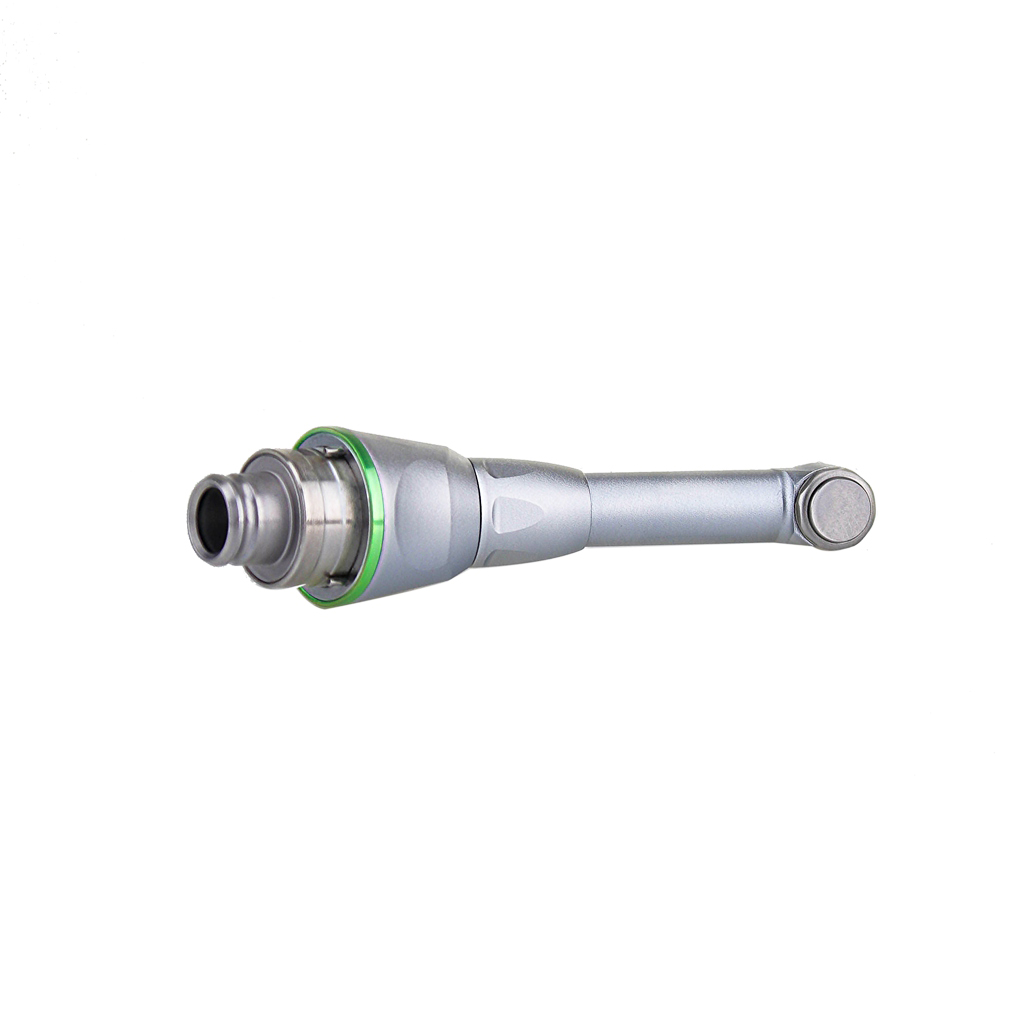

Contra Angle   1

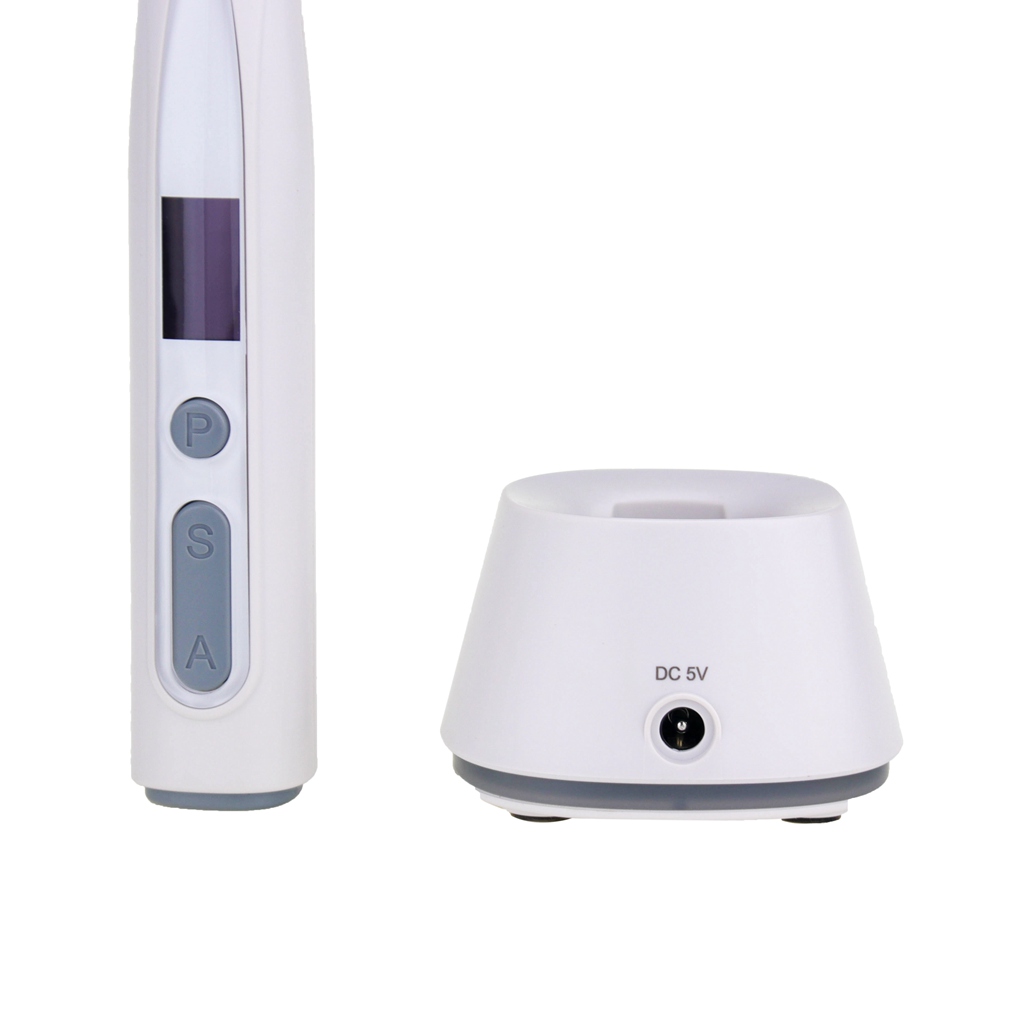

Charging Base  1
User Manual   1

Main Body  1
