Technical Parameters:

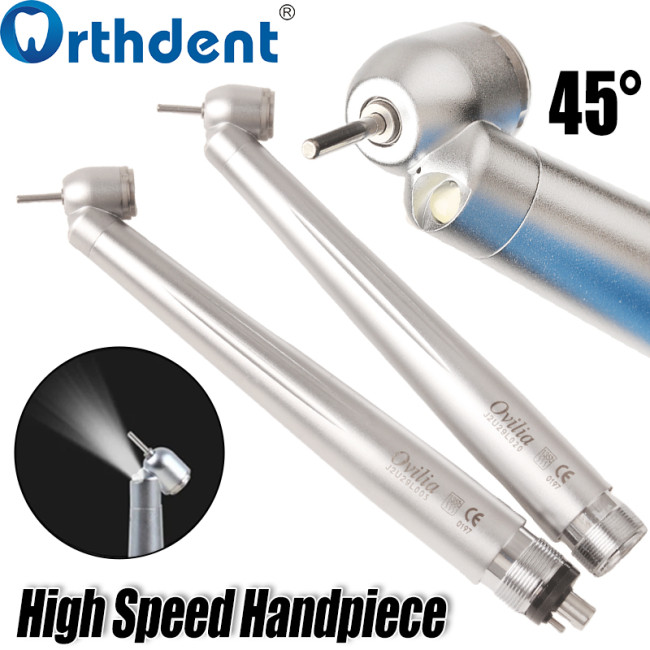

Name: 45 Degree LED Push Button Handpiece

Bearing: Ceramic bearing

Chuck Type: Push button

Speed: 350,000 – 450,000 rpm

Noise: ≤ 65 dB

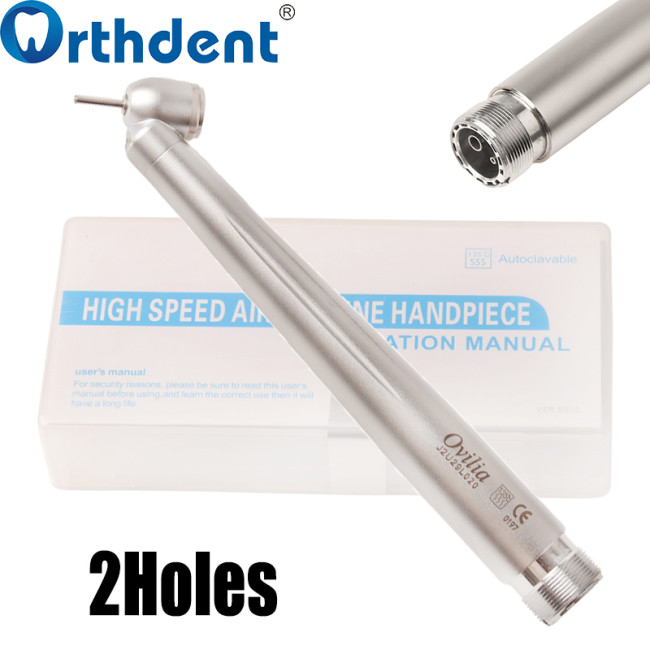

Connector: 2 hole / 4 hole

Air Pressure: 0.2 – 0.25 MPa

Water Pressure: 0.1 – 0.25 MPa

Packing List:

• Handpiece × 1
• Wrench × 1
• English Operation Manual × 1

Feature:

• 45 degree angle Sirona-style dental handpiece
• LED self-powered high speed handpiece
• This air turbine was made with ceramic bearings

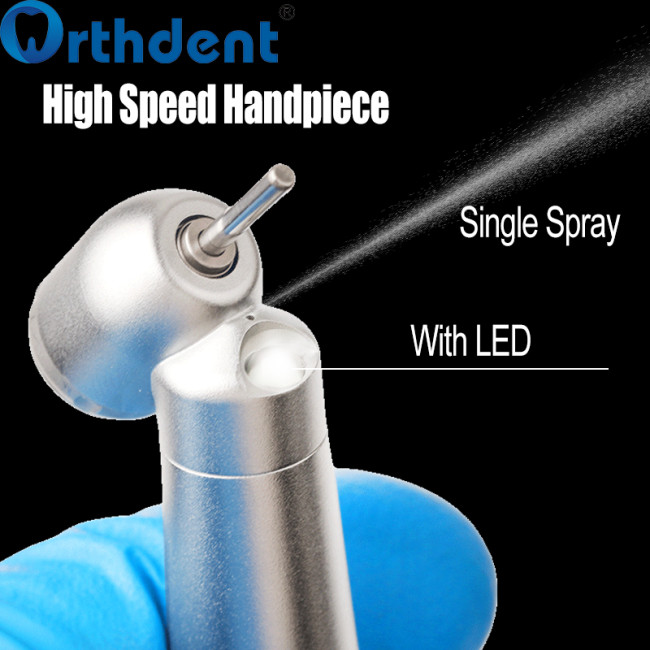

• Single spray handpiece
• 4 sprays for back siphonage prevention sanitation handpiece
• Air spray is on the end of handpiece, reverse as water spray
• Push button type, standard head
• Entire handpiece withstands high-temperature sterilization, meeting infection control standards

Indications:

Suitable for dental clinical procedures including cavity preparation, tooth cutting, and old restoration removal. Especially ideal for posterior teeth and limited-access clinical scenarios.

Instructions for Use:

• Confirm that the handpiece connector type (2-hole or 4-hole) matches the dental unit tubing
• Connect the handpiece to the dental unit tubing, ensuring a secure connection
• Press the push button on the handpiece head, insert the desired bur, and release the button to lock
• Adjust air pressure to 0.2–0.25 MPa and water pressure to 0.1–0.25 MPa
• Step on the foot pedal to start the handpiece. LED illuminates automatically for cutting operation
• Clean the handpiece after each use and sterilize by autoclaving
