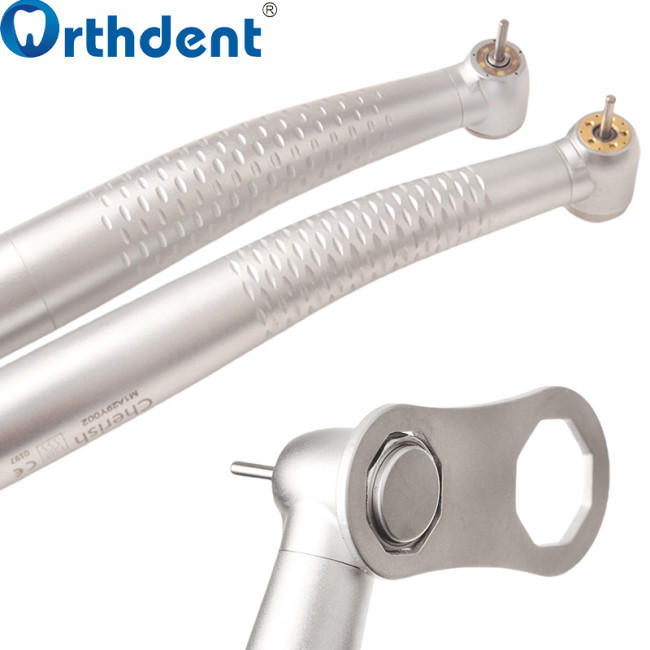

Dental High Speed LED Handpiece

Technical Parameters:

Bearing: Ceramic bearing

Chuck Type: Push button

Speed: 350,000 – 450,000 rpm

Noise: ≤ 65 dB

Connector: 2 hole / 4 hole

Air Pressure: 0.2 – 0.25 MPa

Water Pressure: 0.1 – 0.25 MPa

Features:

• Long life span and quiet running with high quality bearings
• The life span of the 5 LED bulb is 4–5 times longer than normal LED handpiece
• Sufficient LED light for safe recognition of the preparation margins
• Optimum balance for precise treatment

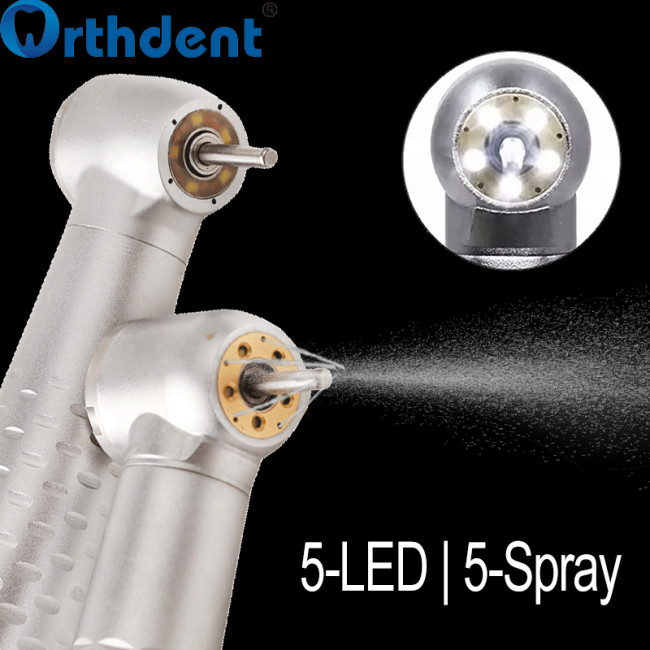

• Five LED bulbs form a circle, creating no shadow during use
• The bulb can be sterilized at 135℃
• Water filtration and back siphonage prevention
• Unique excellent grip and ergonomics with optimized shank profile and monobloc design

Indications:

Suitable for dental clinical procedures including cavity preparation, tooth cutting, old restoration removal, and broken instrument retrieval.

Instructions for Use:

• Confirm that the handpiece connector type (2-hole or 4-hole) matches the dental unit tubing
• Connect the handpiece to the dental unit tubing, ensuring a secure connection

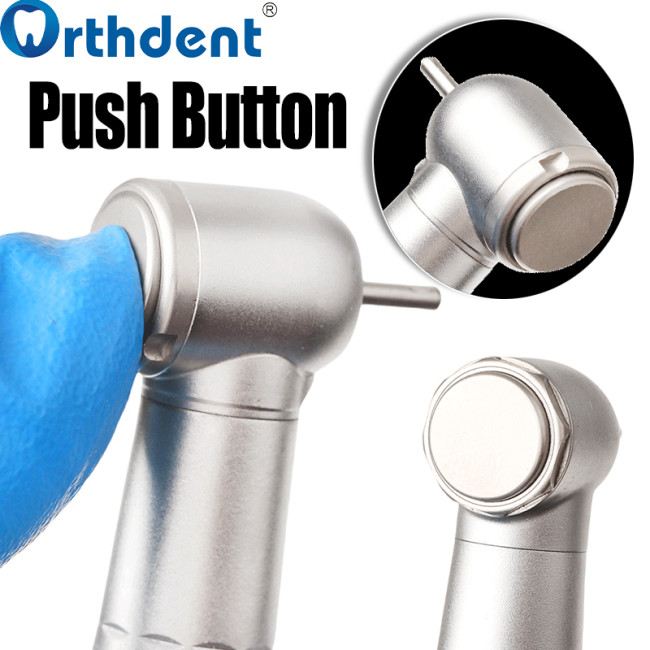

• Press the push button on the handpiece head, insert the desired bur, and release the button to lock
• Adjust air pressure to 0.2–0.25 MPa and water pressure to 0.1–0.25 MPa
• Step on the foot pedal to start the handpiece for cutting operations
• Clean the handpiece exterior and internal tubing after each use, then sterilize by autoclaving
